Venetian Rail - Cutting & Punching
This machine performs multiple functions: it cuts headrails, bottom rails, and steel tilt rods, while also punching headrails for tilter, cord lock, and tape roll support, as well as bottom rails for cord and tape buttons. With its hydraulic power system, the M1COT-101-1 delivers consistent, accurate results, reducing manual effort and production time.
Equipped with customizable cutting and punching dies for Venetian blind sizes of 25mm, 35mm, and 50mm, it offers flexibility for different production requirements. Compact yet robust, with a weight of 548kg and dimensions of 144 × 83 × 153 cm, the machine ensures long-term durability and reliable operation.
．COTTAI provides specialized hydraulic machines engineered for precision, durability, and productivity in blind manufacturing.
1. Cuts headrail, bottom rail and steel tilt rod
2. Punches headrail for tilter, cord lock and tape roll support
3. Punches bottom rail for cord and tape button
4. Hydraulic operation for increased productivity
5. Dies made to order, available for 25, 35 and 50mm sizes

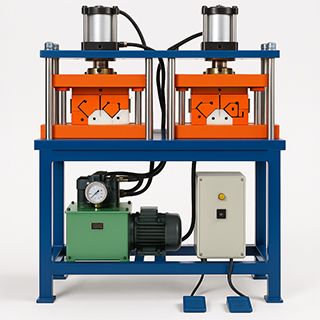

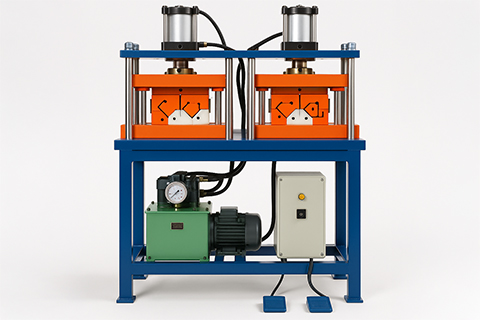

M1COT-101-1 | Hydraulic Cutting & Punching Machine for Venetian Rails | COTTAI LTD
At COTTAI LTD, we deliver precision-engineered machinery to enhance productivity in blind manufacturing. The M1COT-101-1 is a hydraulic-operated machine specifically designed for cutting and punching Venetian blind rails with efficiency and accuracy. Built for durability and high output, this machine is a trusted choice for professional production lines.
With its robust hydraulic operation, the M1COT-101-1 significantly increases productivity while ensuring clean cuts and precise punching. It is capable of handling headrail, bottom rail, and steel tilt rod cutting, as well as punching headrail for tilter, cord lock, and tape roll support. Additionally, it punches bottom rails for cord and tape buttons, offering a complete solution for Venetian blind rail processing.
Technical Information
Machine Type
-
Hydraulic-operated machine for cutting and punching Venetian rails
Main Functions
-
Cuts: Headrail, bottom rail, and steel tilt rod
-
Punches:
-
Headrail for tilter, cord lock, and tape roll support
-
Bottom rail for cord and tape button
-
Operation Method
-
Hydraulic operation for high efficiency and productivity
Dies
-
Cutting dies made to order
-
Punching dies made to order
-
Dies available for Venetian blind sizes: 25mm, 35mm, 50mm
Dimensions
-
144 × 83 × 153 cm
Weight
-
Approx. 548kg
Key Features of COTTAI’s M1COT-101-1 Machine
| Feature | Description |
|---|---|
| Hydraulic Operation | Boosts productivity with efficient and reliable performance |
| Multi-Function Cutting | Cuts headrail, bottom rail, and steel tilt rod |
| Precision Punching | Punches for tilter, cord lock, tape roll support, cord, and tape button |
| Custom Dies | Cutting and punching dies available for 25, 35, and 50mm blind sizes |
| Robust Construction | Heavy-duty design ensures long-term durability |
| Compact Dimensions | 144 × 83 × 153 cm with a stable weight of 548kg |
