Venetian Blinds - Manufacturing (Aluminium Slat)
With dedicated stations for each process—including 1 forming, 1 cutting, 4 punching, and 7 threading stations—the M1COT-202 ensures seamless and precise operation. It supports slat sizes of 15–16mm, 25mm, 35mm, and 50mm (pre-formed coils required for 35mm and 50mm). Capable of producing slat lengths up to 360cm (12ft) with an adjustable output speed of up to 45m/min, this machine is engineered for high-volume production lines.
An alternative model, the M1COT-202S, is also available, offering a fixed output speed of 30m/min while sharing the same dimensions and build quality.
．COTTAI delivers robust automation machinery designed for speed, precision, and reliability in Venetian blind manufacturing.
Features：
Fully automatic machine with forming, cutting, punching, and threading functions
Dedicated stations: 1 forming, 1 cutting, 4 punching, 7 threading
Supports slat sizes 15–16mm, 25mm, 35mm, 50mm
Produces slat lengths up to 360cm (12ft)
Adjustable output speed up to 45m/min
Alternative version (M1COT-202S) with fixed speed of 30m/min
Heavy-duty build with 650kg weight for stable operation

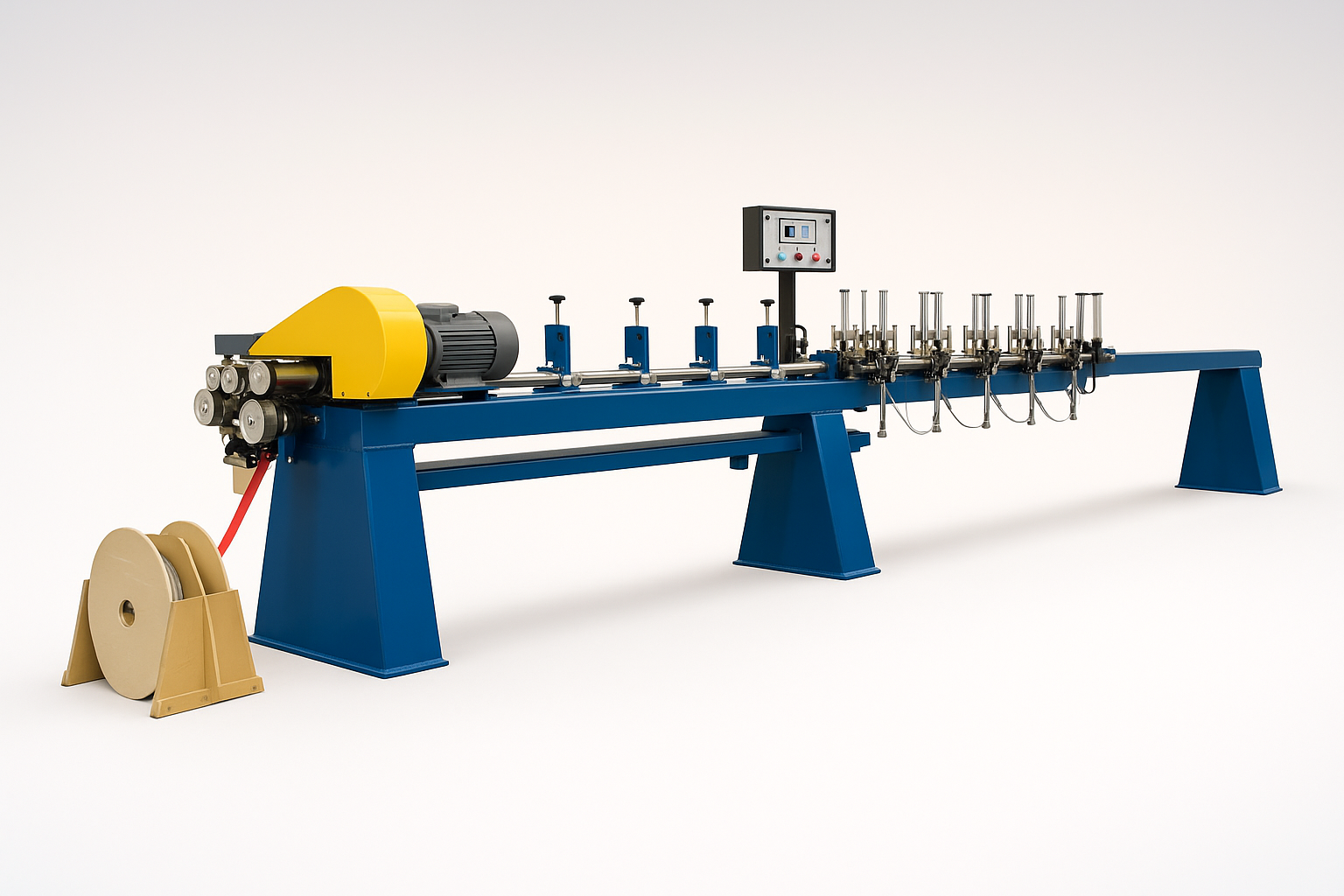

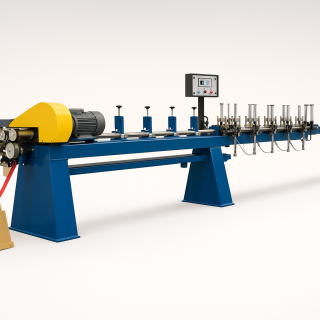

M1COT-202 | Fully Automatic Aluminium Venetian Blind Manufacturing Machine | COTTAI LTD
At COTTAI LTD, we provide advanced automation solutions for the blinds industry. The M1COT-202 is a fully automatic machine engineered for the complete manufacturing of aluminium Venetian blinds. With integrated forming, cutting, punching, and threading functions, this machine delivers maximum productivity, precision, and efficiency for large-scale production lines.
Designed for versatility, the M1COT-202 accommodates slat sizes of 15–16mm, 25mm, 35mm, and 50mm. For 35mm and 50mm slats, pre-formed coils are required. With a maximum slat length of 360cm (12ft) and an impressive output speed of up to 45m/min, the machine ensures both high capacity and accuracy, with adjustable slat output speed to meet varying production needs.
Technical Information
Machine Type
-
Fully automatic machine for aluminium Venetian blind production
-
Functions: Forming, cutting, punching, threading
Main Functions and Stations
-
1 Forming station
-
1 Cutting station
-
4 Punching stations
-
7 Threading stations
Slat Sizes Available
-
15–16mm, 25mm, 35mm, 50mm
-
Pre-formed coil required for 35mm and 50mm
Performance
-
Maximum slat length: 360cm (12ft)
-
Maximum output speed: 45m/min (adjustable)
Operation Requirements
-
Air supply: 5kg/c
-
Voltage: As per customer requirements
Dimensions & Weight
-
Machine dimensions (L × W × H): 472 × 106 × 155 cm
-
Weight: Approx. 650kg
Other Version
-
M1COT-202S: Fixed output speed of 30m/min
-
Same dimensions and weight as M1COT-202
Key Features of COTTAI’s M1COT-202 Machine
| Feature | Description |
|---|---|
| Fully Automatic | Integrates forming, cutting, punching, and threading in one system |
| High Versatility | Supports slat sizes 15–16mm, 25mm, 35mm, and 50mm |
| Large Capacity | Handles slat lengths up to 360cm (12ft) |
| High Speed | Adjustable slat output speed up to 45m/min |
| Multiple Stations | Equipped with 1 forming, 1 cutting, 4 punching, and 7 threading stations |
| Robust Construction | Heavy-duty design with a weight of 650kg |
| Alternate Version | M1COT-202S available with fixed 30m/min output speed |
